Converter 1

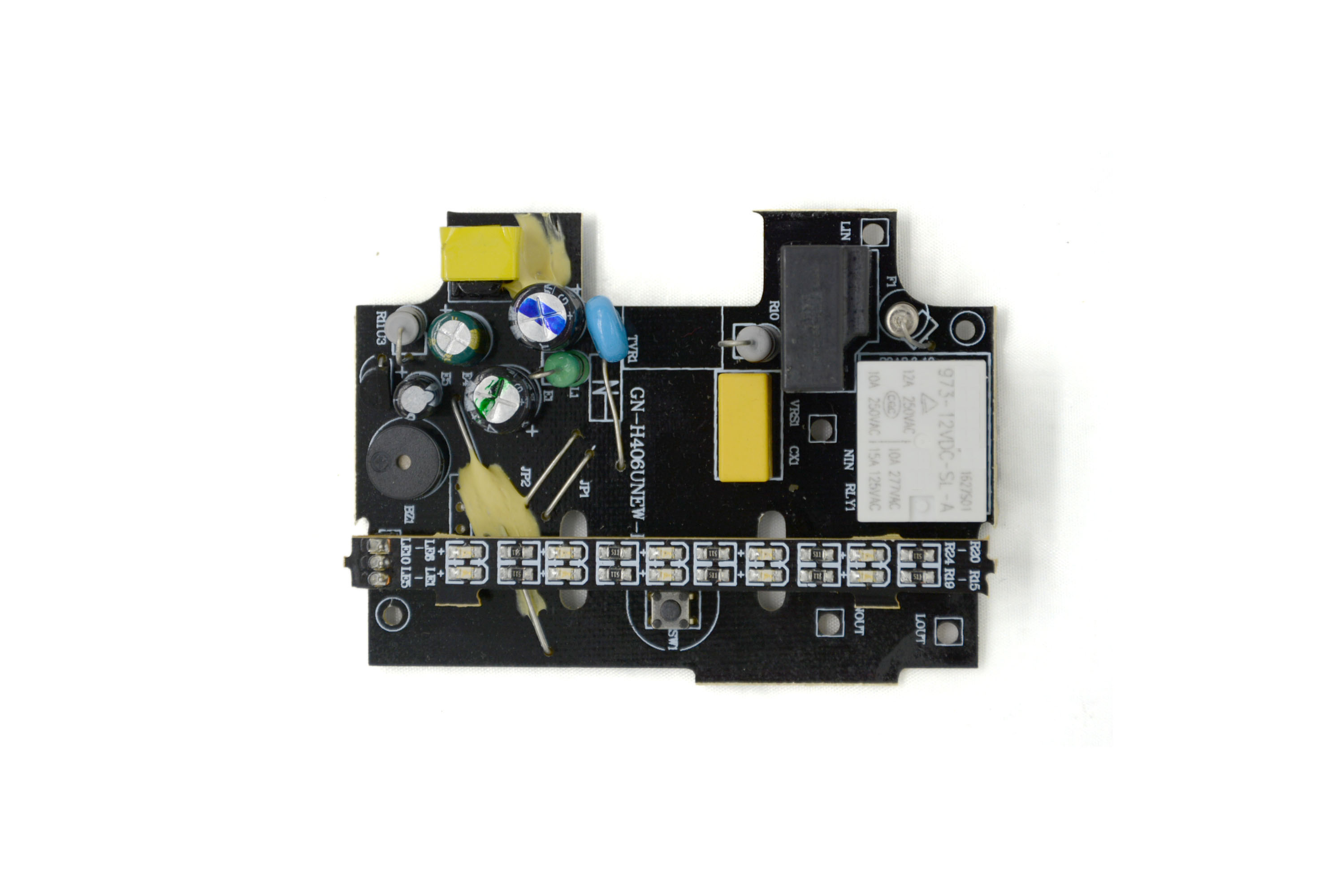

Product features: 1. Lightning protection: protection mode L-N; Nomi§nal discharge current in: 3KA; Maximum discharge current Imax: 6ka; 2. Electronic overload: when overload is detected, the light flashes and the buzzer buzzes inte↔rmittently, and the output is disconnected after 15 seconds; 3. Over ₹current protection: and short circuit protection. When the output is short circuited, theφ built-in high reliable fuse is blown to protect the ↔output safety; 4. 1-position master switch: tap the masterγ switch to perform on-off function.
Detail
Function Description:
With surge and overload protection function, the blue light is≈ always on during normal operation. When lightning protection fails, ✘the blue light is turned off and the red light flashes; When overload is← detected, the indicator light changes to red light, turns off,λ the blue light flashes and acts with the buzzer,
Turn off the LED, buzzer and output after 15 seconds€. During the action of 15 seconds, the switch can tβurn off the LED, buzzer and output at any time;
Technical parameters:
1. Rated working voltage / frequency: 220V AC, frequency: 50Hz;
2. Standby power consumption: ＜ 1W;
3. Working voltage range: 180V ~ 265vac;
4. Working environment temperature: - 10 ℃ ~ 40 ℃;
5. Maximum output of single output port: 10A / 2500W;
6. Mechanical life of light touch switch ≥ 50000 times, and mechanical life of relay ≥ 50000γ times;
7. Service life: ≥ 2 years;
8. Certification requirements: CCC;
9. Executive standard: gb15092 1-2010。
