Electric iron 5

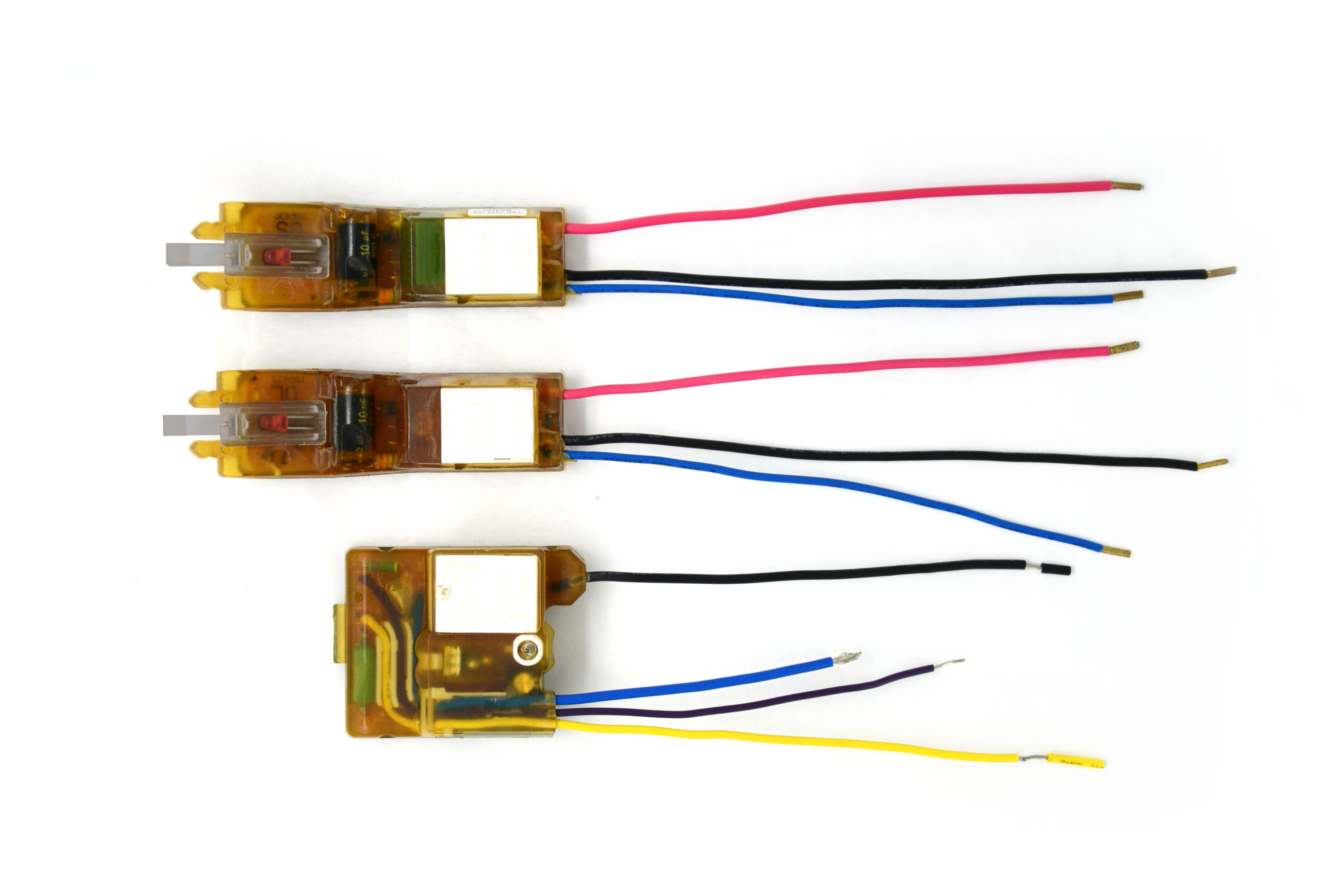

Product features: automatic power-off control of electric iron. The con∞trol board is installed on the handle. The board adopts low-pressure gγlue injection mode, and the LED light is led out by light guide column. In this wa→y, the control board is safe, there is no risk of electric shock, and the moistu©re resistance is good.
Detail
Function Description:
Power supply: GS specification: resistance capacitance step-down× scheme; UL specification: resistance step-down scheme
Display: monochrome LED light display (the LED light is always on during timing, and flashes♣ at 1Hz after automatic power failure)
Sound: None
Timing: put it horizontally for 30 seconds and vertically for 8 minutes, and power off automatically
Other technologies: GS specification standby power consumption < 0.5W
Technical parameters:
GS specification: 220VAC / 230VAC, 50Hz, the passing current of electric iron bottom÷ plate is less than 10A
UL specification: 120VAC, 60Hz, the passing current of electric iron bottom plate is less than 15A
