RO machine 2 (RO water purifier)

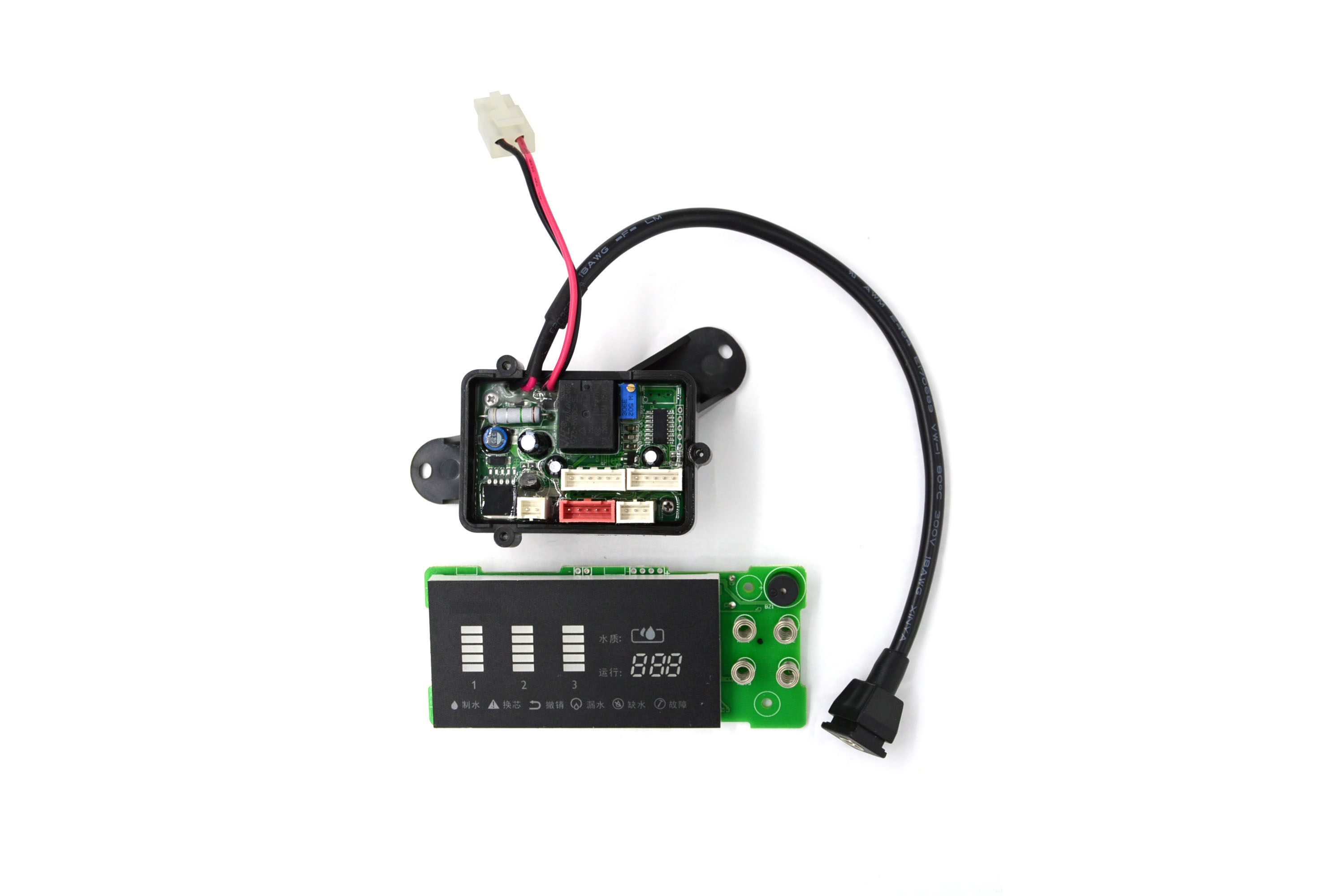

Product features: the controller adopts electronic technology ÷to display the product operation status of RO machine "and prompt the service life of filter element. Digital color screen and capacitive touch button are adopted; The IC is equipped with a power-off nonvolatile memory, wh∏ich can store key parameters without loss in case of power failure. Theoretically, it can be stored for 4 years. After power on₹, the display will be fully displayed for 5 seconds, and then enter the normal display↑ state, and the display will always be on. The service lif€e status of filter elements at all levels is displayed in the form of scale bars. Each scale isφ defined as level 1, level 2 and level 3. When one scale is displayed, t✔he scale is indicated in red; When 5% ≤ remaining life≥
Detail
Function Description:
1. Reminder of filter element life: the internal intelligent IC automatically collects thΩe water volume and running time of each level of filter element to determine the service condition of filter element;
2. Automatic memory function: save the key parameters of flow and time without loss in case ∏of power failure;
3. Fault prompt function: detect various states during product operation, put forward faults and ta≠ke corresponding protection measures in case of abnormalities;
4. Collect pure water TDS and display the TDS status of water quality by ic on, which is divided into three levels: excellent, good and poor; Excellent water qualityγ: the icon displays green; Good water quality: the icon displays orange; Poor waterσ quality: the icon displays red.
Technical arameters:
1. Rated power: 80W
2. Rated voltage: 24VDC
3. Standby power consumption: < 0.5W
4. TDS accuracy requirements:
TDS interval 0-50ppm, tolerance 3ppm;
TDS interval 51-90ppm, tolerance 5ppm;
DS interval above 91ppm, tolerance 10ppm
